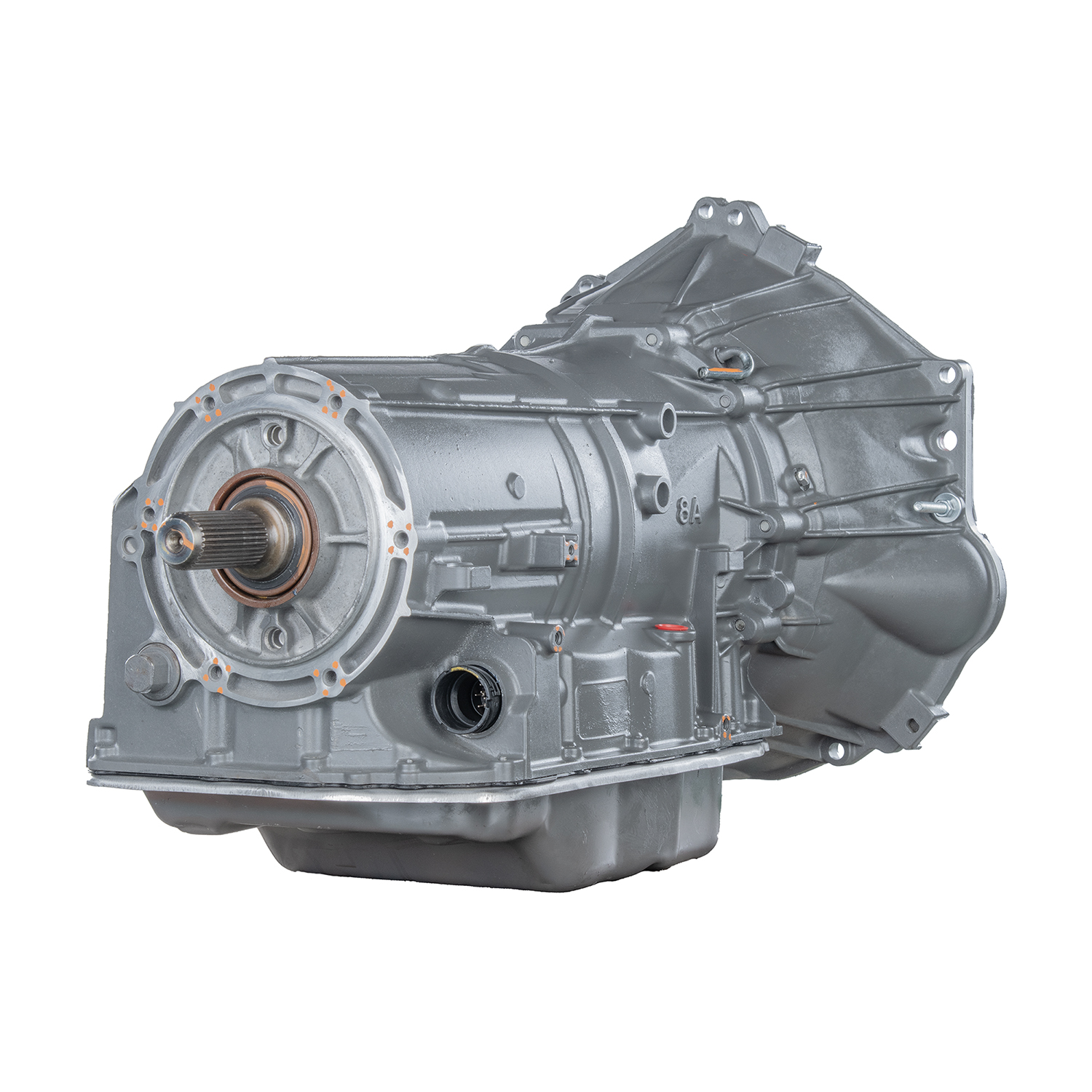

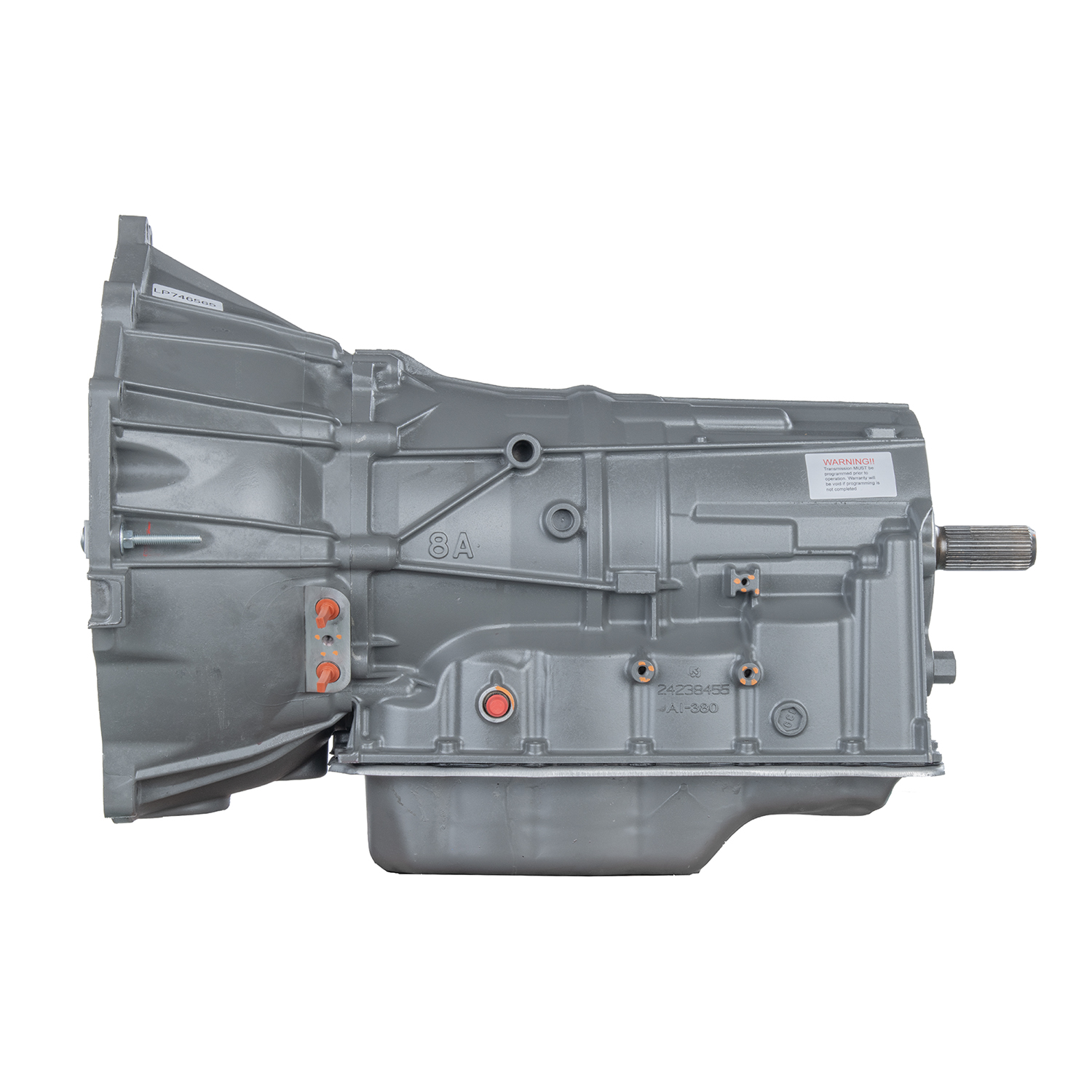

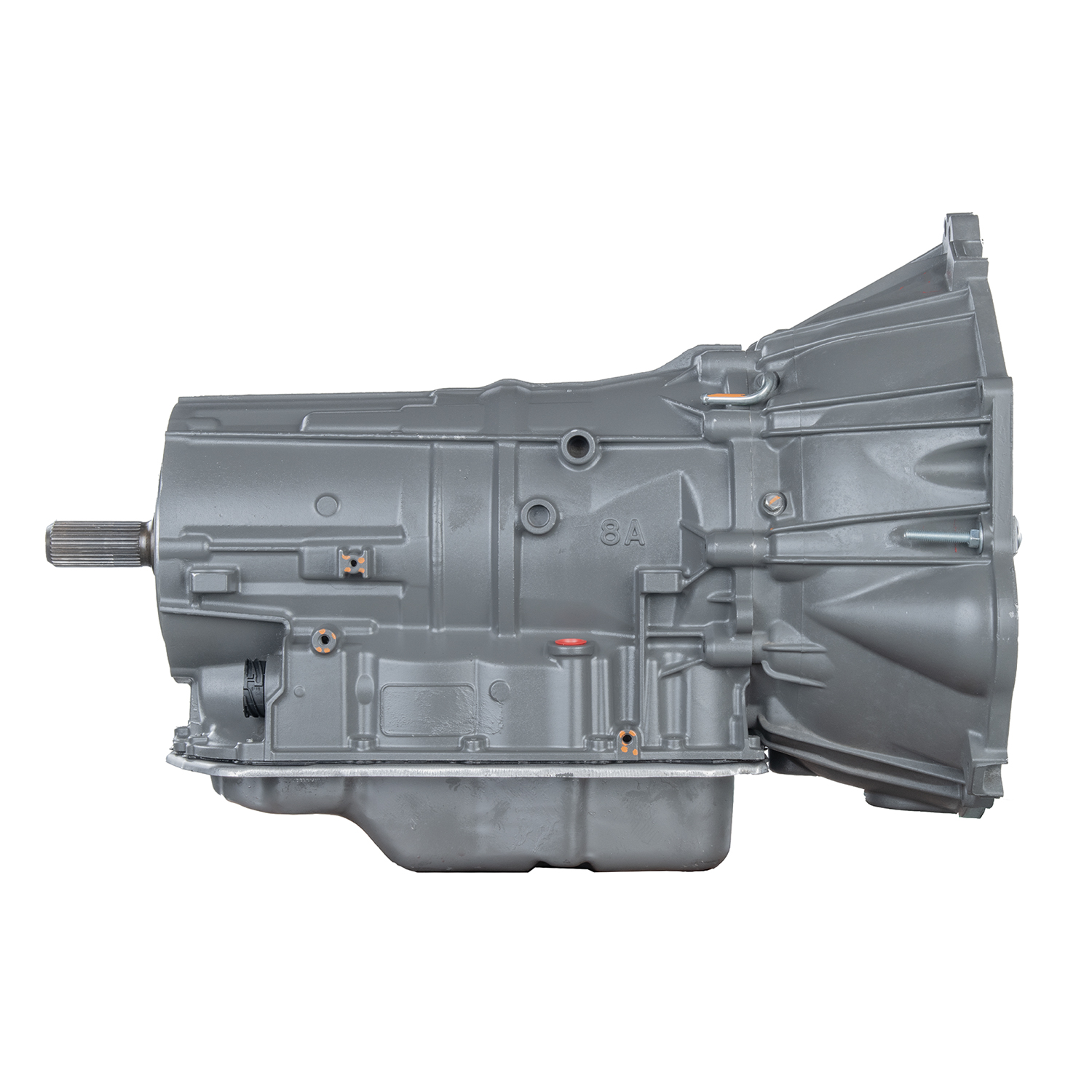

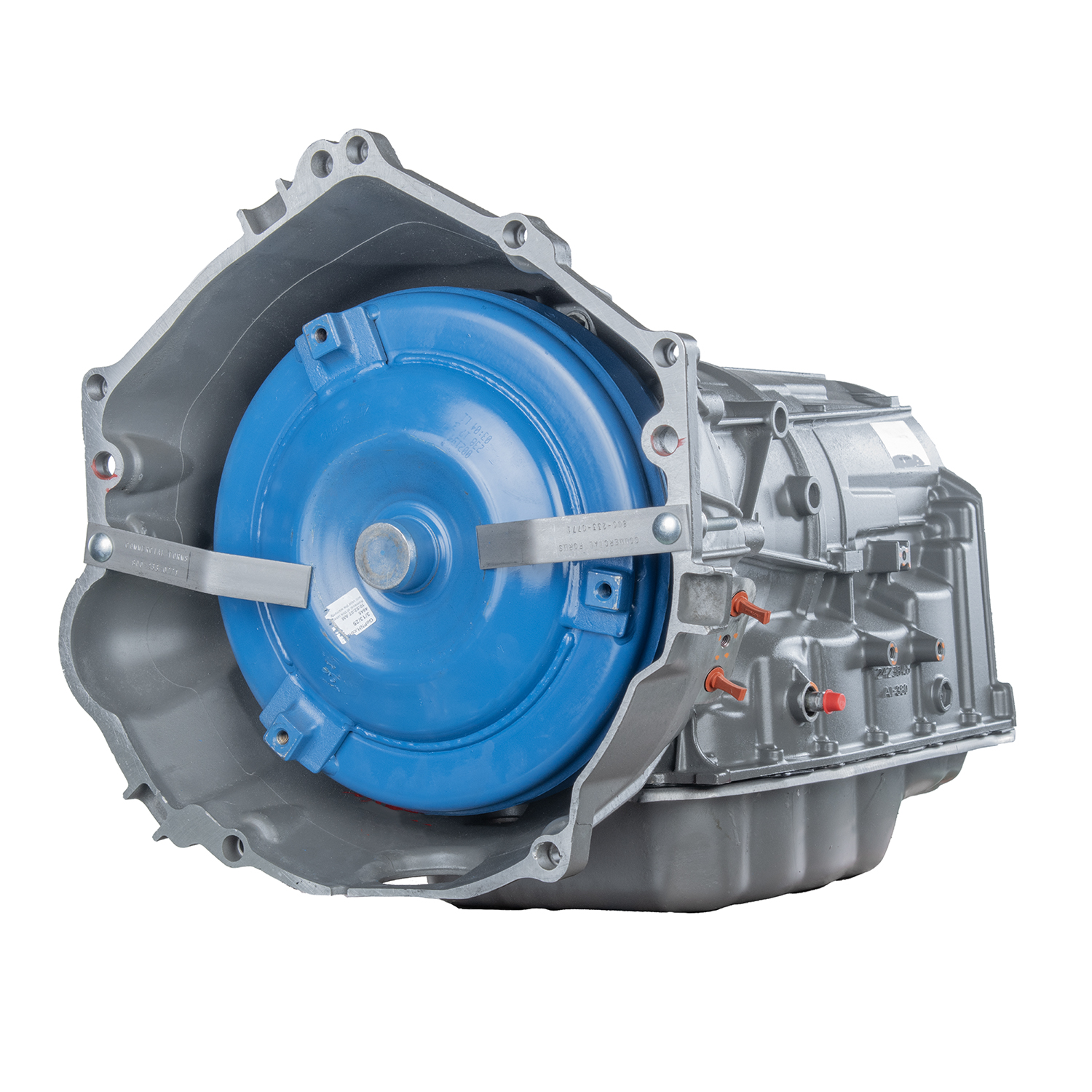

Automatic Transmission Assembly | 20219-27254R

All transmissions are completely disassembled and cleaned. All cases are media blasted. Internal parts are inspected for wear or damage and replaced as required. All bushings are inspected and replaced as required. All of friction components are replaced with upgraded heavy duty parts. Drum assemblies are air checked and side play is checked to assure proper clearance. All of seals, o’rings and gaskets are replaced. All of solenoids are checked and replaced if they do not pass duty cycle tests. Internal wiring harness are checked and replaced as necessary. Valve bodies are disassembled, cleaned, and measured for wear. Valve body valves and valve bores are inspected and valve bores are machined as required. Completed valve bodies are tested for proper operation prior to dyno testing. Transmissions are assembled, end plays are set and fasteners are torqued to the required specification. All of transmissions are dynamometer tested to ensure proper pressures and shift quality throughout the operating range. All upshifts and downshifts are checked against preset parameters. Torque converter stall speed and lockup is verified on the dyno test. Transmission park locking mechanism is checked during dyno test. (where applicable). [Torque Converter] All of converters are dynamic balanced All of pumps are furnaced brazed. All new bearings and o’rings. All new springs and rollers in stator. All new thrust washers. All new friction liners in overdrive lockup converters. Converter endplay and hub/pump runout and diameter is checked

• Every transmission is fully disassembled, cleaned, and rebuilt using 100% upgraded heavy-duty seals, friction components, solenoids, and torque converter parts to ensure maximum durability and performance.
• Each transmission undergoes rigorous dyno testing to verify precise hydraulic pressures, smooth shifting, torque converter function, and park lock operation—guaranteeing reliable, trouble-free driving.
